The KrosFlo® Pro-Connex fittings both simplify and make a Tangential Flow Filtration path more robust. The sanitary flange of the Pro-Connex fitting attaches directly to the Hollow Fiber Filtration Module with a standard sanitary clamp. Tubing and pressure transducers can then be attached to the Pro-Connex's hose barb and female luer port, eliminating the need for tube-to-tube adapters, fittings and connections, Pro-Connex fitting are molded polysulfone, the same low-leachable and highly compatible polymer used in Spectrum's hollow fiber module housings.

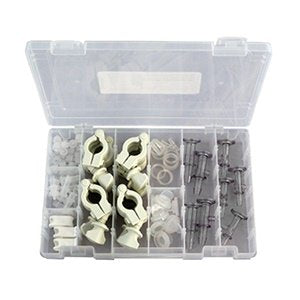

Three Pro-Connex Kits are available to meet a variety of applications.
| ACPX-KT1-01N |
3 |
Pro-Connex 3/4" TC x 1/4" HB and Female Leur Lok |
|
| 3 |
Pro- Connex 3/4" TC x 3/8" HB and Female Luer Lok |
| 2 |
3/4" PolypropyleneTC Endcap with tab |
| 10 |
3/4" platinum cured silicone TC gasket |
| 5 |
1/2"-3/4" Plastic TC clamp |
|
| ACPX-KT2-01N |
2 |
Pro-Connex 3/4" TC x 3/8" HB and Female Leur Lok |
|
| 2 |
Pro-Connex 1 1/2" TC x 3/8" HB and Female Luer Lok |
| 2 |
Pro-Connex 1 1/2" TC x 1/2" HB and Female Luer Lok |
| 1 |
Pro-Connex 1 1/2" TC x 1/2" 90° Bend HB and Female Luer Lok |
| 2 |
1 1/2" Polypropylene TC EndCap with tab |
| 10 |
1 1/2" platinum cured silicone TC gasket |
| 5 |
1 1/2" Plastic TC Clamp |
|
| ACPX-KT3-01N |
3 |
Pro-Connex 1 1/2" TC x 3/8" HB and Female Luer Lok |
|
| 3 |
Pro-Connex 1 1/2" TC x 1/2" HB and Female Luer Lok |
| 1 |
Pro-Connex 1 1/2" TC x 3/8" 90° Bend HB and Female Luer Lok |
| 1 |
Pro-Connex 1 1/2" TC x 1/2" 90° Bend HB and Female Luer Lok |
| 2 |
1 1/2" Polypropylene TC EndCap with tab |
| 10 |
1 1/2" platinum cured silicone TC gasket |
| 10 |
3" platinum cured silicone gasket |
| 5 |
1 1/2" Plastic TC Clamp |
| 3 |
3" Plastic TC Clamp |
| 2 |
3" to 1 1/2" Conical Reducer |
