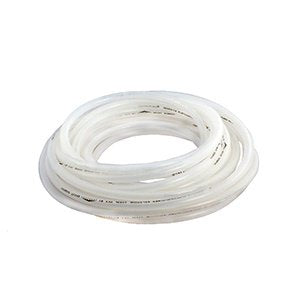

PharmaPure Tubing

ACTU-P13-25N

ACTU-P14-25N

ACTU-P15-25N

ACTU-P16-25N

ACTU-P17-25N

ACTU-P18-25N

ACTU-P24-25N

ACTU-P25-25N

ACTU-P26-25N

ACTU-P73-25N

ACTU-P82-25N

Model

06435-13

06435-14

06435-15

06435-16

06435-17

96435-18

96435-24

96435-25

96435-26

96435-73

96435-82

Tubing material

PharmaPure^®

PharmaPure^®

PharmaPure^®€‹€‹€‹€‹€‹€‹€‹

PharmaPure^®€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹

PharmaPure^®€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹

PharmaPure^®€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹

PharmaPure^®€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹

PharmaPure^®€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹

PharmaPure^®€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹

PharmaPure^®€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹€‹

PharmaPure^®

Tubing I.D.

0.80 mm (0.031")

1.60 mm (0.063")

4.80 mm (0.189")

3.10 mm (0.122")

6.40 mm (0.252")

7.90 mm (0.311")

6.40 mm (0.252")

4.80 mm (0.189")

6.40 mm (0.252")

9.50 mm (0.374")

12.70 mm (0.500")

Hose barb size

0.0625"

0.0625"

0.1875"

0.125"

0.25"

0.375"

0.25"

0.1875"

0.25"

0.375"

0.5"

L/S Masterflex Tubing Size

13

14

15

16

17

18

24

25

26

73

82

Max. flow rate

36 ml/min

130 ml/min

1100 ml/min

480 ml/min

1700 ml/min

2300 ml/min

1800 ml/min

1000 ml/min

4000 ml/min

8000 ml/min

13000 ml/min

Length per pack

7.6 m (25 ft.)

7.6 m (25 ft.)

7.6 m (25 ft.)

7.6 m (25 ft.)

7.6 m (25 ft.)

7.6 m (25 ft.)

7.6 m (25 ft.)

7.6 m (25 ft.)

7.6 m (25 ft.)

7.6 m (25 ft.)

7.6 m (25 ft.)

Max. pressure

2.7 bar (40 psi)

2.7 bar (40 psi)

2.7 bar (40 psi)

2.7 bar (40 psi)

1.4 bar (20 psi)

1 bar (15 psi)

2.7 bar (40 psi)

2.4 bar (35 psi)

2.7 bar (40 psi)

2.7 bar (40 psi)

1.4 bar (20 psi)

Min. temperature

€“51 °C (€“60 °F)

€“51 °C (€“60 °F)

€“51 °C (€“60 °F)

€“51 °C (€“60 °F)

€“51 °C (€“60 °F)

€“51 °C (€“60 °F)

€“51 °C (€“60 °F)

€“51 °C (€“60 °F)

€“51 °C (€“60 °F)

€“51 °C (€“60 °F)

€“51 °C (€“60 °F)

Max. temperature

132 °C (270 °F)

132 °C (270 °F)

132 °C (270 °F)

132 °C (270 °F)

132 °C (270 °F)

132 °C (270 °F)

132 °C (270 °F)

132 °C (270 °F)

132 °C (270 °F)

132 °C (270 °F)

132 °C (270 °F)

Min. temperature (dynamic)

€“20 °C (€“4 °F)

€“20 °C (€“4 °F)

€“20 °C (€“4 °F)

€“20 °C (€“4 °F)

€“20 °C (€“4 °F)

€“20 °C (€“4 °F)

€“20 °C (€“4 °F)

€“20 °C (€“4 °F)

€“20 °C (€“4 °F)

€“20 °C (€“4 °F)

€“20 °C (€“4 °F)

Max. temperature (dynamic)

100 °C (212 °F)

100 °C (212 °F)

100 °C (212 °F)

100 °C (212 °F)

100 °C (212 °F)

100 °C (212 °F)

100 °C (212 °F)

100 °C (212 °F)

100 °C (212 °F)

100 °C (212 °F)

100 °C (212 °F)

Max. Vacuum

660 mm Hg (26" Hg)

660 mm Hg (26" Hg)

660 mm Hg (26" Hg)

660 mm Hg (26" Hg)

510 mm Hg (20" Hg)

510 mm Hg (20" Hg)

660 mm Hg (26" Hg)

660 mm Hg (26" Hg)

660 mm Hg (26" Hg)

660 mm Hg (26" Hg)

Pump series

L/S

L/S

L/S

L/S

L/S

L/S

L/S

L/S

I/P

I/P

I/P

Reggulatory approvals

USP; Ph. Eur.; FDA; Non-DEHP ;RoHS

USP; Ph. Eur.; FDA; Non-DEHP ;RoHS

USP; Ph. Eur.; FDA; Non-DEHP ;RoHS

USP; Ph. Eur.; FDA; Non-DEHP ;RoHS

USP; Ph. Eur.; FDA; Non-DEHP ;RoHS

USP; Ph. Eur.; FDA; Non-DEHP ;RoHS

USP; Ph. Eur.; FDA; Non-DEHP ;RoHS

USP; Ph. Eur.; FDA; Non-DEHP ;RoHS

USP; Ph. Eur.; FDA; Non-DEHP ;RoHS

USP; Ph. Eur.; FDA; Non-DEHP ;RoHS

USP; Ph. Eur.; FDA; Non-DEHP ;RoHS

Compatible Sterilization

Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad

Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad

Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad

Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad

Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad

Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad

Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad

Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad

Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad

Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad

Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad

Suction lift H‚‚O

8.8 m (29 ft.)

8.8 m (29 ft.)

8.8 m (29 ft.)

8.8 m (29 ft.)

6.7 m (22 ft.)

6.7 m (22 ft.)

8.8 m (29 ft.)

8.8 m (29 ft.)

8.8 m (29 ft.)

8.8 m (29 ft.)

7 m (23 ft.)
