	ACTU-P13-25N	ACTU-P14-25N	ACTU-P15-25N	ACTU-P16-25N	ACTU-P17-25N	ACTU-P18-25N	ACTU-P24-25N	ACTU-P25-25N	ACTU-P26-25N	ACTU-P73-25N	ACTU-P82-25N
Model	06435-13	06435-14	06435-15	06435-16	06435-17	96435-18	96435-24	96435-25	96435-26	96435-73	96435-82
Tubing material	PharmaPure^®	PharmaPure^®	PharmaPure^®	PharmaPure^®	PharmaPure^®	PharmaPure^®	PharmaPure^®	PharmaPure^®	PharmaPure^®	PharmaPure^®	PharmaPure^®
Tubing I.D.	0.80 mm (0.031")	1.60 mm (0.063")	4.80 mm (0.189")	3.10 mm (0.122")	6.40 mm (0.252")	7.90 mm (0.311")	6.40 mm (0.252")	4.80 mm (0.189")	6.40 mm (0.252")	9.50 mm (0.374")	12.70 mm (0.500")
Hose barb size	0.0625"	0.0625"	0.1875"	0.125"	0.25"	0.375"	0.25"	0.1875"	0.25"	0.375"	0.5"
L/S Masterflex Tubing Size	13	14	15	16	17	18	24	25	26	73	82
Max. flow rate	36 ml/min	130 ml/min	1100 ml/min	480 ml/min	1700 ml/min	2300 ml/min	1800 ml/min	1000 ml/min	4000 ml/min	8000 ml/min	13000 ml/min
Length per pack	7.6 m (25 ft.)	7.6 m (25 ft.)	7.6 m (25 ft.)	7.6 m (25 ft.)	7.6 m (25 ft.)	7.6 m (25 ft.)	7.6 m (25 ft.)	7.6 m (25 ft.)	7.6 m (25 ft.)	7.6 m (25 ft.)	7.6 m (25 ft.)
Max. pressure	2.7 bar (40 psi)	2.7 bar (40 psi)	2.7 bar (40 psi)	2.7 bar (40 psi)	1.4 bar (20 psi)	1 bar (15 psi)	2.7 bar (40 psi)	2.4 bar (35 psi)	2.7 bar (40 psi)	2.7 bar (40 psi)	1.4 bar (20 psi)
Min. temperature	–51 °C (–60 °F)	–51 °C (–60 °F)	–51 °C (–60 °F)	–51 °C (–60 °F)	–51 °C (–60 °F)	–51 °C (–60 °F)	–51 °C (–60 °F)	–51 °C (–60 °F)	–51 °C (–60 °F)	–51 °C (–60 °F)	–51 °C (–60 °F)
Max. temperature	132 °C (270 °F)	132 °C (270 °F)	132 °C (270 °F)	132 °C (270 °F)	132 °C (270 °F)	132 °C (270 °F)	132 °C (270 °F)	132 °C (270 °F)	132 °C (270 °F)	132 °C (270 °F)	132 °C (270 °F)
Min. temperature (dynamic)	–20 °C (–4 °F)	–20 °C (–4 °F)	–20 °C (–4 °F)	–20 °C (–4 °F)	–20 °C (–4 °F)	–20 °C (–4 °F)	–20 °C (–4 °F)	–20 °C (–4 °F)	–20 °C (–4 °F)	–20 °C (–4 °F)	–20 °C (–4 °F)
Max. temperature (dynamic)	100 °C (212 °F)	100 °C (212 °F)	100 °C (212 °F)	100 °C (212 °F)	100 °C (212 °F)	100 °C (212 °F)	100 °C (212 °F)	100 °C (212 °F)	100 °C (212 °F)	100 °C (212 °F)	100 °C (212 °F)
Max. Vacuum	660 mm Hg (26" Hg)	660 mm Hg (26" Hg)	660 mm Hg (26" Hg)	660 mm Hg (26" Hg)	510 mm Hg (20" Hg)	510 mm Hg (20" Hg)	660 mm Hg (26" Hg)	660 mm Hg (26" Hg)	660 mm Hg (26" Hg)	660 mm Hg (26" Hg)	510 mm Hg (20" Hg)
Pump series	L/S	L/S	L/S	L/S	L/S	L/S	L/S	L/S	I/P	I/P	I/P
Reggulatory approvals	USP; Ph. Eur.; FDA; Non-DEHP ;RoHS	USP; Ph. Eur.; FDA; Non-DEHP ;RoHS	USP; Ph. Eur.; FDA; Non-DEHP ;RoHS	USP; Ph. Eur.; FDA; Non-DEHP ;RoHS	USP; Ph. Eur.; FDA; Non-DEHP ;RoHS	USP; Ph. Eur.; FDA; Non-DEHP ;RoHS	USP; Ph. Eur.; FDA; Non-DEHP ;RoHS	USP; Ph. Eur.; FDA; Non-DEHP ;RoHS	USP; Ph. Eur.; FDA; Non-DEHP ;RoHS	USP; Ph. Eur.; FDA; Non-DEHP ;RoHS	USP; Ph. Eur.; FDA; Non-DEHP ;RoHS
Compatible Sterilization	Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad	Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad	Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad	Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad	Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad	Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad	Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad	Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad	Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad	Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad	Autoclave. Ethylene Oxide. Gamma Irradiation up to 2.5 Mrad
Suction lift H₂O	8.8 m (29 ft.)	8.8 m (29 ft.)	8.8 m (29 ft.)	8.8 m (29 ft.)	6.7 m (22 ft.)	6.7 m (22 ft.)	8.8 m (29 ft.)	8.8 m (29 ft.)	8.8 m (29 ft.)	8.8 m (29 ft.)	7 m (23 ft.)

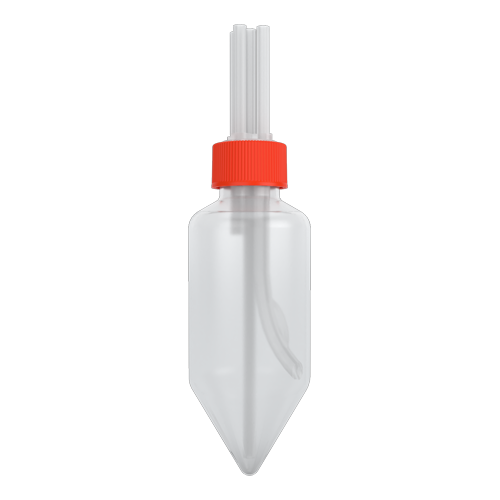

250mL Conical Reservoir, Non-Irradiated
