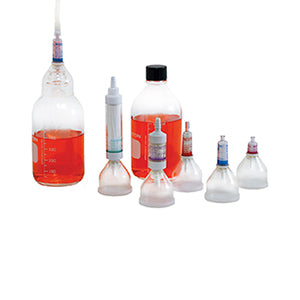

MediaKap Filters are designed to efficiently sterile filter and clarify culture media or buffers through a 0.2 µm DynaFibre® membrane. MediaKap Filters are available for 2 , 5, 10, 25 or 50 liter volumes and can be operated by gravity or under pressure. Irradiated filters and filters with filling bells are also available.
|
|
| 2 Filter Types: |
MediaKap |
| 5 Volume Sizes: |
2, 5, 10, 25 and 50 liter |
| Pore Rating: |
0.2 µm |
| Membrane SA: |
(refer to Ordering Information) |
| Inlet/Outlet Conn.: |
(refer to Ordering Information) |
| Packaging: |
irradiated |
|
|
| HF Membrane: |
Mixed cellulose ester (ME) |
| HF Vent: |
Polypropylene |
| Potting Material: |
Polyurethane |
| Housing: |
Polycarbonate |
| End-caps: |
Polycarbonate |
| Filling Bell: |
PVC (if present) |
|
|
| Filter Size & Type |
Water Flow @ 10 psig |
DMEM w/o serum |
DMEM w/ serum |
| MediaKap-2 |
400 ml/min |
0.2 - 2 L |
- |
| MediaKap-5 |
750 ml/min |
2 - 5 L |
- |
| MediaKap-10 |
1000 ml/min |
5 - 10 L |
- |
| MediaKap-25 |
1400 ml/min |
10 - 25 L |
- |
| MediaKap-50 |
2000 ml/min |
25 - 50 L |
- |
