SKU: SKIT-CD-17490N

ProConnex® TFF Self Assembly Kit for KR2i - MICRO - 15/50ML BTL

$598.00

This ProConnex® TFF Self Assembly Kit is designed for use with the KrosFlo® KR2i TFF System and handles working volumes ranging from 0.75mL to 50mL, depending on the bottle used. Compatible with Spectrum® Hollow Fiber MicroKros and MidiKros Modules.

Specifications
SKIT-CD-17490N
System KR2i
Filter Compatibility HF D and C Module
Bottle Compatibility ACBT-015-S1N, 15 mL Conical
ACBT-050-S1N, 50 mL Conical
Working Volume 0.75 mL - 15mL
2.5 mL - 50mL
Gamma Irradiated No

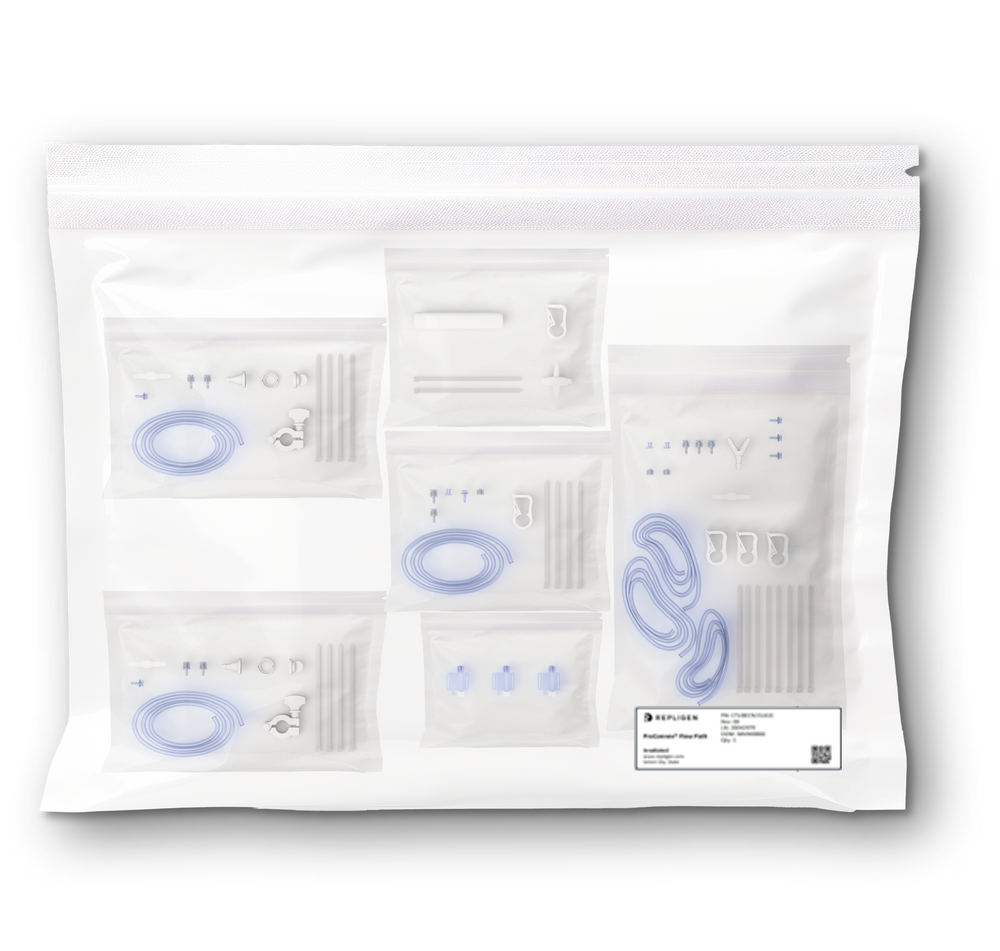

Kit Contents
SKIT-CD-17490N
Qty Description MOC
Feed Bag
1 CONNECTOR, LUER, FEMALE, 0.063" HB PP
2 CONNECTOR, LUER, FEMALE, 0.125" HB PP
1 CONNECTOR, LUER, MALE, 0.063" HB PP
2 CONNECTOR, LUER, MALE, 0.125" HB PP
1 CONNECTOR, STRAIGHT REDUCER, 0.125" HB X 0.063" HB PP
1 CONNECTOR, STRAIGHT, 0.125" HB PP
1 TUBING, PHARMAPURE, L/S 14, 0.06" ID 0.185" OD TPE
4 FASTENER, CABLE TIE, 4", BLACK NYLON
Retentate Bag
1 CONNECTOR, LUER, FEMALE, 0.063" HB PP
2 CONNECTOR, LUER, FEMALE, 0.125" HB PP
1 CONNECTOR, LUER, MALE, 0.063" HB PP
2 CONNECTOR, LUER, MALE, 0.125" HB PP
1 CONNECTOR, STRAIGHT REDUCER, 0.125" HB X 0.063" HB PP
1 CONNECTOR, STRAIGHT, 0.125" HB PP
1 TUBING, SILICONE, L/S 14, 0.06 ID" 0.185 OD" SI
4 FASTENER, CABLE TIE, 4", BLACK NYLON
Permeate Bag
1 CLAMP, PINCH, 0.375" MAX OD PP
1 CONNECTOR, LUER, CAP, FEMALE PP
2 CONNECTOR, LUER, FEMALE, 0.125" HB PP
2 CONNECTOR, LUER, MALE, 0.125" HB PP
1 CONNECTOR, LUER, PLUG, MALE PP
1 TUBING, SILICONE, L/S 14, 0.06 ID" 0.185 OD" SI
4 FASTENER, CABLE TIE, 4", BLACK NYLON
Sensors Bag
3 SENSOR, PRESSURE, SPREPS, 42" CABLE (NOT SHOWN), RJ11, FLL X MLL PSU
Bottle Vent/Stir Bar Bag
1 CLAMP, PINCH, 0.375" MAX OD PP
1 CONNECTOR, LUER, MALE, 0.063" HB PP
1 CONNECTOR, LUER, MALE, 0.125" HB PP
1 FILTER, AIR, SARTORIUS, 0.2 UM, 1757H-K, FLL X MSL PES
2 FASTENER, CABLE TIE, 4", BLACK NYLON
Addition Bag
3 CLAMP, PINCH, 0.375" MAX OD PP
2 CONNECTOR, LUER, CAP, FEMALE PP
1 CONNECTOR, LUER, FEMALE, 0.063" HB PP
3 CONNECTOR, LUER, FEMALE, 0.125" HB PP
1 CONNECTOR, LUER, MALE, 0.063" HB PP
3 CONNECTOR, LUER, MALE, 0.125" HB PP
2 CONNECTOR, LUER, PLUG, MALE PP
1 CONNECTOR, STRAIGHT REDUCER, 0.125" HB X 0.063" HB PP
1 CONNECTOR, WYE, 0.125" HB PP
3 TUBING, PHARMAPURE, L/S 14, 0.06" ID 0.185" OD TPE
8 FASTENER, CABLE TIE, 4", BLACK NYLON
